Calpeda NMS 80/200A/B

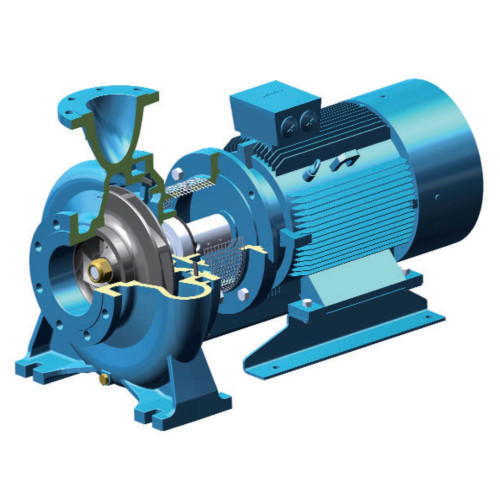

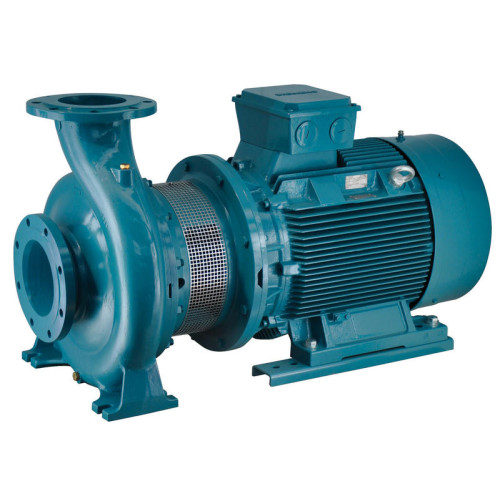

The Calpeda NMS 80/200A/B centrifugal pump is a cantilever-monoblock type, made with a horizontal suction branch and shaft, and a vertical discharge branch. This design format ensures ease of use and maintenance. pump. Suitable for pumping clean liquids and liquids with contamination. The pump is applicable in almost all areas of economic activity. The pump motor has a modern operating mechanism, ensuring durability and reliability, as well as a reduced noise level. The materials used to manufacture the pump - cast iron, bronze, high-quality stainless steel, brass - increase the service life of the pumping equipment and prevent corrosion and oxidation. Special designs of these pumps allow the ability to work with other environments, including those with high or low acidity. Also, special end seals allow working with numerous water-glycol mixtures. In addition, an explosion-proof design is possible. The monoblock design completely protects against liquid ingress into the pump's working mechanism, which minimizes malfunctions. If the operating instructions are followed, the pump can operate 24/7. The increased demand for the model in professional and domestic use provides an optimal ratio of technical characteristics and cost. The capacity of the Calpeda NMS 80/200A/B pump is 22 kW, and the voltage is 380V. The pump provides a pressure of 45.4 to 57 m, and a capacity of 48 to 141 m³/h.

Scope of application

• Industry
• Agriculture and irrigation
• Residential and office buildings
• Water supply
• Fire fighting installations
• Heat supply
• Conditioning

Operating limitations

• Continuous operation mode
• Liquid temperature from -10°C to +90°C
• Ambient temperature no more than 40°C
• Maximum permissible final pressure in the pump body: 10 bar
• Nanometric suction height no more than 7 m.
