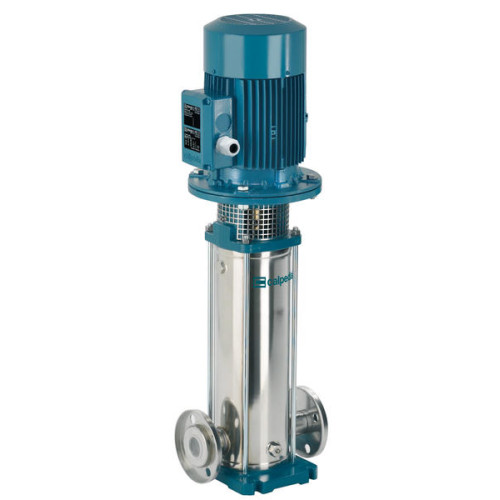

Calpeda MXVM 25-312

The main advantage of the Calpeda MXVM 25-312 multistage pump is the ability to use the pumped liquid as a lubricant for guide bushings, which ensures unrivaled reliability and long operation of the mechanism without operational malfunctions. The Calpeda MXVM 25-312 pump is a monoblock in which there are sockets (suction and supply) on one shaft, which have the same diameter. The pump motor is characterized by increased reliability and reduced noise level. The Calpeda MXVM 25-312 pump only pumps clean non-explosive liquids without chemically aggressive inclusions for the materials of the pump, and the liquids should not contain solid or long-fiber elements. The pump is versatile enough for use in industrial and domestic spheres, in systems used to increase pressure, fire extinguishing systems, high-pressure washing mechanisms, for irrigation of agricultural lands, in the operation of sports facilities. The main materials of execution are chromium-nickel stainless steel, eliminating the effect of corrosion and oxidation. These parameters increase the working life of the pump. The possibility of continuous uninterrupted operation is provided by protection against voltage surges, as well as an oil level protection system. Special versions allow using this pump in a horizontal position. The power of the Calpeda MXVM 25-312 pump is 2.2 kW, and the voltage is 220 V. The pump provides a pressure of 51 to 127 m, and a capacity of 1 to 4.5 m³/h.

Scope of application

• Water supply
• Household and industrial sphere
• Agriculture and irrigation
• Sports facilities
• Fire fighting installation
• High pressure washing device

Operating limitations

• Liquid temperature from -15°C to +110°C
• Liquid temperature from -15°C to +120°C (for MXV 50)
• Ambient temperature no more than 40°C
• Maximum permissible final pressure in the pump body: 25 bar
• Maximum permissible final pressure in the pump body: 16 bar (for MXV 50 with oval flanges)
