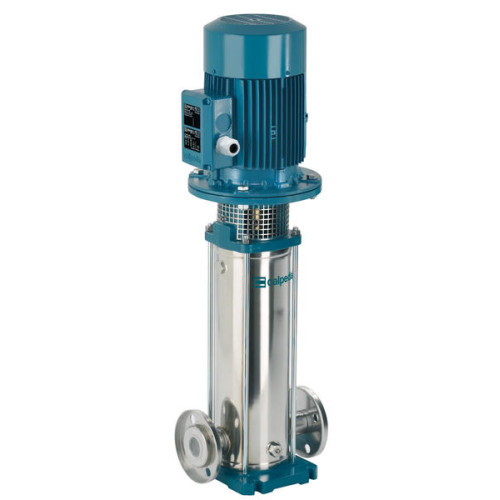

Calpeda MXVL 50-2005 O

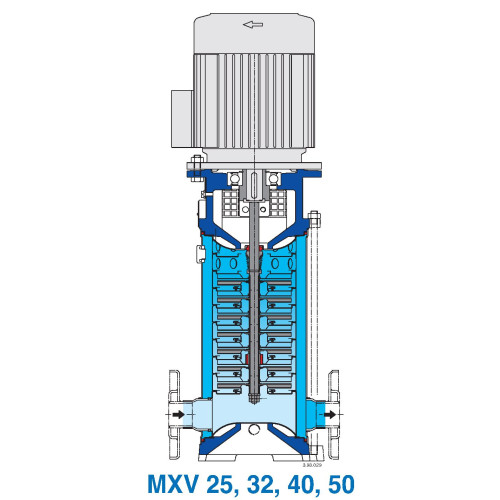

The main advantage of the Calpeda MXVL 50-2005 O multistage pump (multi-row vertical) is the ability to use the pumped liquid as a lubricant for guide bushings, which ensures unrivaled reliability and long operation of the mechanism without operational failures. The Calpeda MXVL 50-2005 O pump is a monoblock in which there are sockets (suction and supply) on one shaft, which have the same diameter. The pump motor is characterized by increased reliability and reduced noise level. The Calpeda MXVL 50-2005 O pump only pumps clean, non-explosive liquids without chemically aggressive inclusions for the materials of the pump, and the liquids should not contain solid or long-fiber elements. The pump is versatile enough for use in industrial and domestic applications, in systems used to increase pressure, fire extinguishing systems, high-pressure washing mechanisms, for watering agricultural lands, and in the operation of sports facilities. The main materials of execution are chromium-nickel stainless steel, which eliminates the effect of corrosion and oxidation. These parameters increase the working life of the pump. The possibility of continuous uninterrupted operation is provided by protection against voltage drops, as well as an oil level protection system. Special designs allow this pump to be used horizontally. The capacity of the Calpeda MXVL 50-2005 O pump is 5.5 kW, and the voltage is 380 V. The pump provides a pressure of 32.5 to 70 m, and a capacity of 10 to 28 m³/h.

Scope of application

• Industry
• Agriculture and irrigation
• Residential and office buildings
• Water supply
• High pressure washing units
• Pressure boosting system
• Fire fighting installations
• Sports facilities

Operating limitations

• Liquid temperature from -15°C to +110°C
• Ambient temperature no more than 40°C
• Maximum permissible final pressure in the pump body: 25 bar
