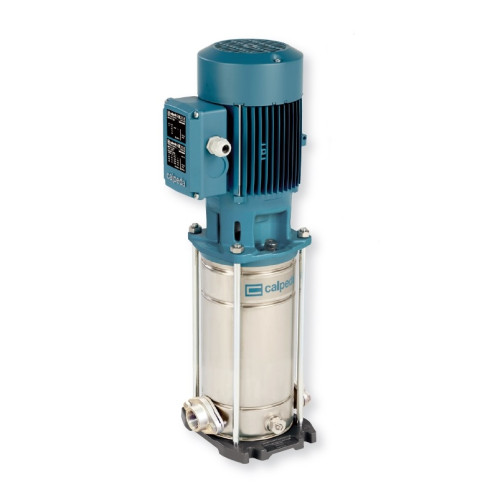

Calpeda MXV-B 25-306 O

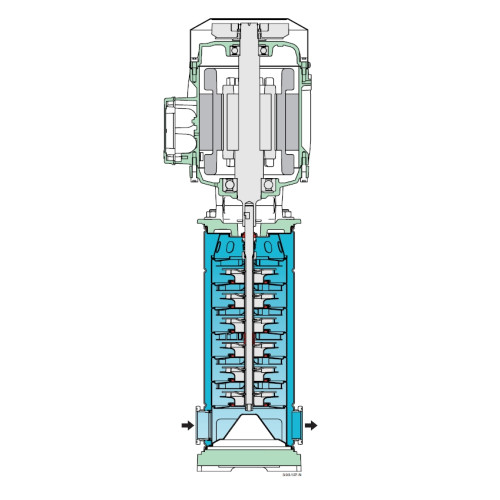

The main advantage of the Calpeda MXV-B 25-306 O multistage pump is the ability to use the pumped liquid as a lubricant for guide bushings, which ensures unrivaled reliability and long operation of the mechanism without operational malfunctions. The pump is used in water supply, booster stations, fire-fighting installations. The Calpeda MXV-B 25-306 O pump is a monoblock in which there are sockets (suction and supply) on one shaft, which have the same diameter. The pump motor is characterized by increased reliability and reduced noise. The Calpeda MXV-B 25-306 O pump is suitable only for liquids that are clean, without chemically aggressive inclusions for the materials of the pump, and there should be no solid elements in the liquids. The main materials of execution are chromium-nickel stainless steel, which eliminates the effect of corrosion and oxidation. These parameters increase the working life of the pump. The possibility of continuous uninterrupted operation is provided by protection against changes in electrical voltage, as well as an oil level protection system. The engine can work with an inverter. The power of the Calpeda MXV-B 25-306 O pump is 1.1 kW, and the voltage is 380 V. The pump provides a pressure of 25 to 63.5 m, and a capacity of 1 to 4.5 m³/h.

Scope of application

• Industry
• Agriculture and irrigation
• Residential and office buildings
• Water supply
• High pressure washing units
• Pressure boosting system
• Fire fighting installations

Operating limitations

• Liquid temperature from -15°C to +90°C
• Ambient temperature no more than 40°C
• Maximum permissible final pressure in the pump body: 16 bar
