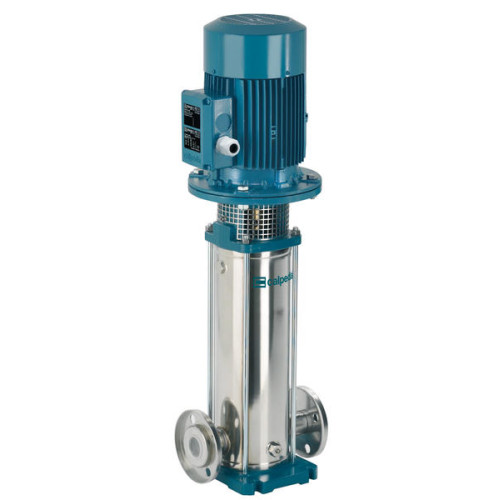

Calpeda MXVM 25-304 O

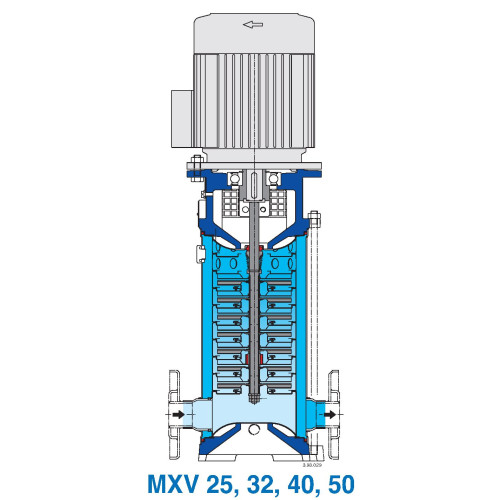

The main advantage of the Calpeda MXVM 25-304 O multistage pump (multi-row vertical) is the ability to use the pumped liquid as a lubricant for guide bushings, which ensures unrivaled reliability and long operation of the mechanism without operational malfunctions. The Calpeda MXVM 25-304 O pump is a monoblock in which there are sockets (suction and supply) on one shaft, which have the same diameter. The pump motor is characterized by increased reliability and reduced noise level. The Calpeda MXVM 25-304 O pump pumps only clean, non-explosive liquids without chemically aggressive inclusions for the materials of the pump, and the liquids should not contain solid or long-fiber elements. The pump is versatile enough for use in industrial and domestic spheres, in systems used to increase pressure, fire extinguishing systems, high-pressure washing mechanisms, for irrigation of agricultural lands, in the operation of sports facilities. The main materials of execution are chromium-nickel stainless steel, eliminating the effect of corrosion and oxidation. These parameters increase the working life of the pump. The possibility of continuous uninterrupted operation is provided by protection against voltage surges, as well as an oil level protection system. Special designs allow using this pump in a horizontal position. The power of the Calpeda MXVM 25-304 O pump is 1.1 kW, and the voltage is 380 V. The pump provides a pressure of 3.6 to 12 m, and a capacity of 8 to 24 m³/h.

Scope of application

• Industry
• Agriculture and irrigation
• Residential and office buildings
• Water supply
• High pressure washing units
• Pressure boosting system
• Fire fighting installations
• Sports facilities

Operating limitations

• Liquid temperature from -15°C to +110°C
• Ambient temperature no more than 40°C
• Maximum permissible final pressure in the pump body: 25 bar
