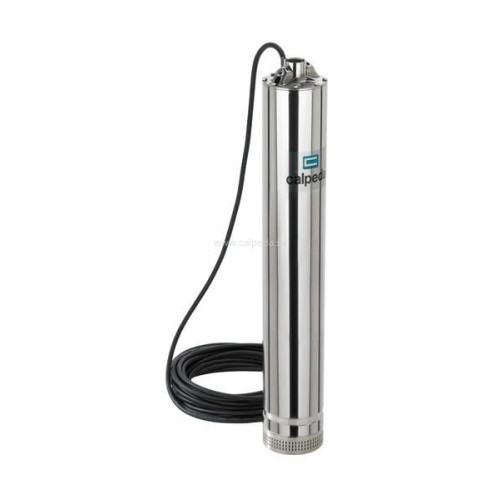

Calpeda MXS 309

One of the main features of the Calpeda MXS 309 pump is the presence of a cooling system for the engine and hydraulics, which is produced using the liquid that is pumped. This means that the equipment functions reliably even if partially immersed in liquid. The filter with which the pump is equipped allows you to effectively prevent solid particles from entering the engine. The modern structure of the hydraulic component of the engine allows the equipment to make minimal noise. This allows you to use the pump in industrial and domestic areas, for watering gardens, when arranging rainwater disposal systems, as well as when organizing the delivery of water from wells and tanks. It is made of stainless steel rolled products, which was stamped using a cold method - this eliminates the occurrence of corrosion and oxidation. All external and internal parts in contact with liquid are made of stainless chromium-nickel steel. In addition, the Calpeda MXS 309 pump is free from the risk of idling and water getting inside the pump. To start the pump, it does not need to be completely filled with water. All the above features are facilitated by a double seal on the shaft, which includes an oil chamber. The dry winding has a triple impregnation, resistant to moisture. The engine is suitable for operation with an inverter. The power of the Calpeda MXS 309 pump is 1.5 kW, and the voltage is 380 V. The pump provides a pressure of 35 to 91 m, capacity - from 1 to 4.5 m³ / h.

Scope of application

• Construction
• Industry
• Agriculture and irrigation
• Residential and office buildings
• Private houses and cottages
• Water supply from wells, baths and reservoirs
• Rainwater recycling

Operating limitations

• Continuous operation
• Liquid temperature up to 35°C
• Minimum internal diameter of the well: 140 mm
• Immersion depth: min 100 mm, max 20 m (with cable of appropriate length)
