Calpeda MXP 406

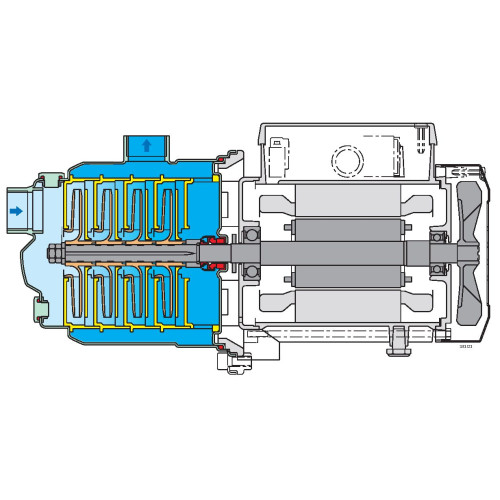

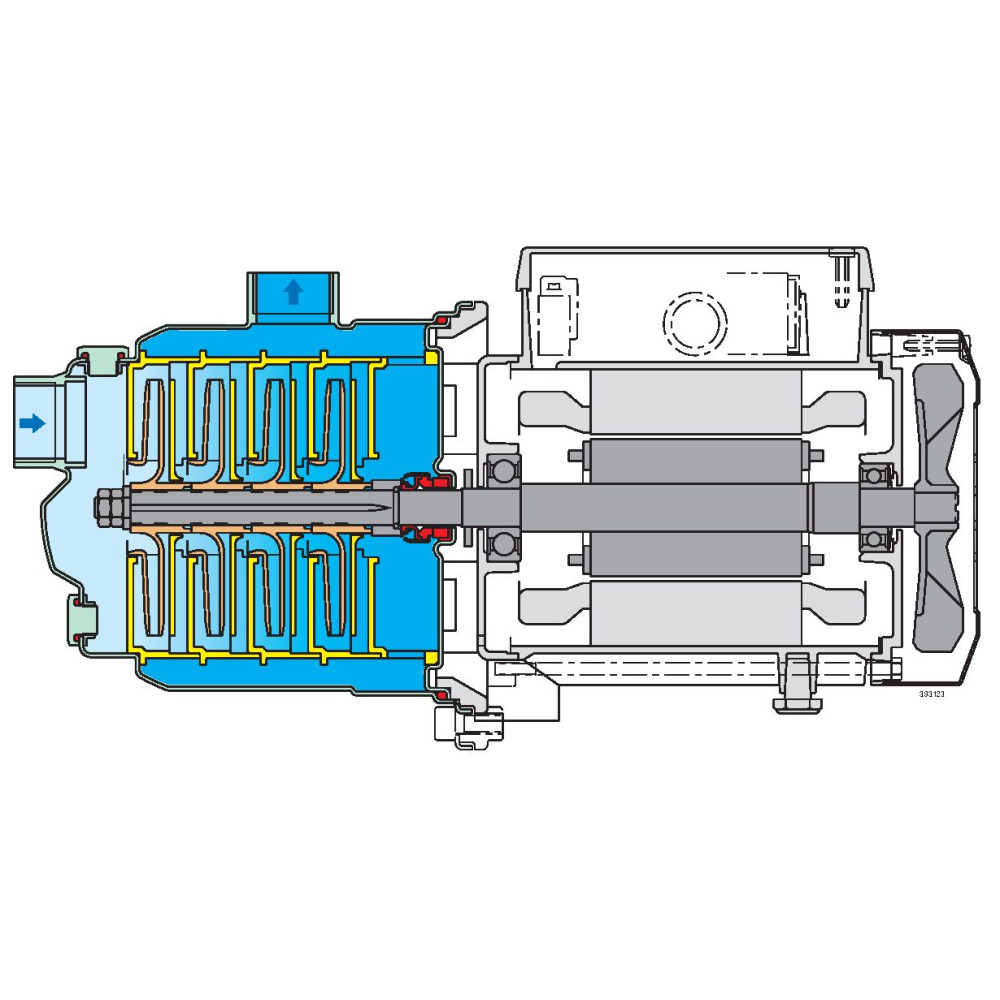

The Calpeda MXP 406 pump is a single-block horizontal multistage pump and has a compact mobile design, so the pumps are easy to operate and move. The pump requires minimal maintenance and is easy to install. The most popular task is to provide water supply to private buildings and commercial facilities. Pumps are also used in agriculture for watering areas. The pump is additionally protected from running dry. The suction pipe, which is supplied with the pump, is located above the pump shaft and provides a self-priming function when the pump and its suction pipe are pre-filled with water. The body has a monolithic design, open only on one side, and the connecting part and the base are monolithic - this reliably protects the pump motor from moisture getting inside. The water flow moves around the stages, so the Calpeda MXP 406 pump produces less noise. The main material of execution is stainless chrome-nickel steel. The pump parts are also made of high-quality materials: the stage body, suction part and impeller are made of noryl, the mechanical seal is made of ceramics. Such materials prevent corrosion and oxidation, which allows the pump to be used for many years. The pump is designed to work with an inverter. The engine has a modern design and can handle intensive loads. The power of the Calpeda MXP 406 pump is 1.1 kW, and the voltage is 380 V. The pump provides a pressure of 21.4 to 58.5 m, and a capacity of 2.25 to 7.2 m³/h.

Scope of application

• Construction
• Water supply
• Agriculture and irrigation
• Residential and office buildings

Operating limitations

• Continuous operation mode
• Liquid temperature from 0°C to +50°C
• Ambient temperature no more than 40°C
• Maximum permissible final pressure in the pump body: 8 bar
