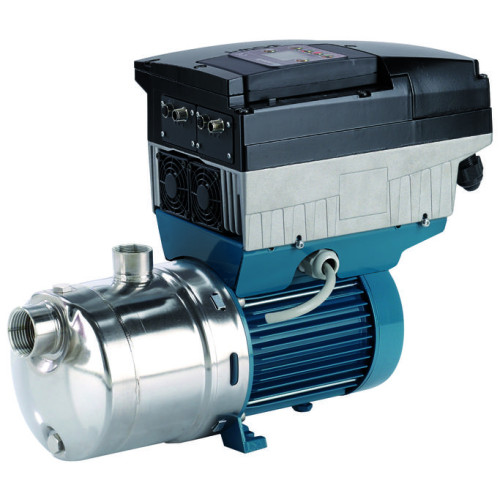

Calpeda MXH EI 206/C

Calpeda MXH EI 206/C 0 1 520 274 ₸

In stock Product code: I62250061000

Calpeda Brand

1 520 274 ₸

Quick order

Specification

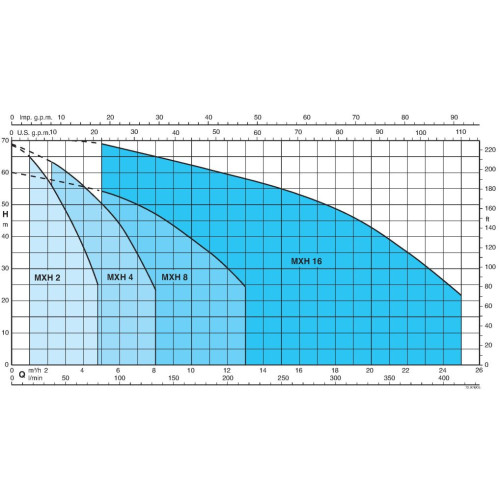

Head max., m65	Head min., m25	Productivity max., m³/h4.8
Voltage, V380	Width, mm160	Productivity min., m³/h1
Height, mm368	Length, mm532	MaterialStainless steel AISI 304

All Attributes

Shipping Information

Enter a delivery address

Country

Region / State

Post Code

City

Description

The NM EI pumps are available with a power of 0.55 kW to 22 kW and are equipped with I-MAT inverters. They enable the implementation of an extremely compact and efficient variable speed system, which is ideal for use in water supply and for the distribution of hot and cold water. The pump is equipped with sensors programmed directly at the factory and programmable by the user for the desired operating mode.

Advantages

Energy saving
More compact system
Ease of use
Customized programming according to installation requirements
Reliability

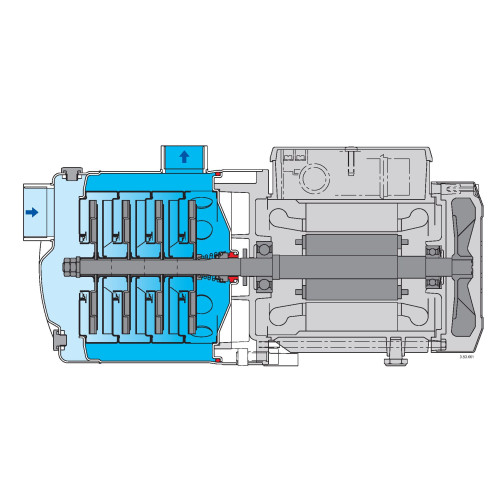

Design

Pump
Electric motor
I-MAT frequency controller
Engine Mounting Adapter
Connecting cable for inverter and electric pump
Pressure sensors

Nominal engine power: from 0.55 kW to 22 kW.
Adjustment range: speed 1750÷2900 1/min (125-pole pumps).
Dry running protection. Protection against operation with a closed socket.
Leakage protection. Overvoltage protection in the engine.
Protection against overvoltage or undervoltage in the power supply system
Protection against imbalance between power phases

Scope of application

Water supply
Industrial and domestic sphere
Agriculture and irrigation

Operating limitations

Continuous operation mode
Liquid temperature from -15°C to +110°C
Ambient temperature no more than 40°C
Maximum permissible final pressure in the pump body: 8 bar

Specifications Calpeda MXH EI 206/C

Head max., m	65
Head min., m	25
Productivity max., m³/h	4.8
Voltage, V	380
Width, mm	160
Productivity min., m³/h	1
Height, mm	368
Length, mm	532
Material	Stainless steel AISI 304
Number of revolutions	2900
Weight, g	24900
