Calpeda MXH 804/A

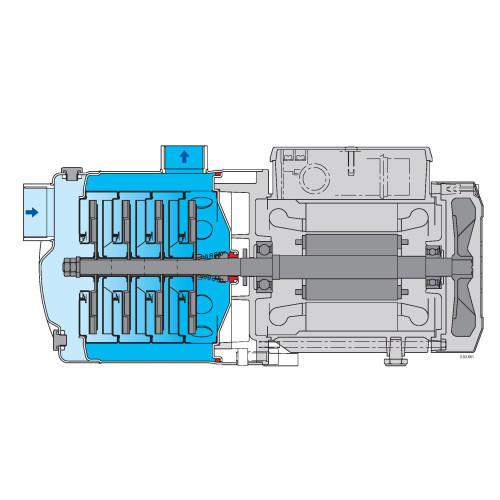

The Calpeda MXH 804/A pump is a horizontal multistage water-pressure equipment and has a multifunctional scope of use. It allows to provide water supply to commercial and domestic facilities, residential and industrial buildings, agricultural facilities and garden plots. The pump motor has a modern design and has increased reliability. The Calpeda MXH 804/A pump body and main elements are made of high-quality stainless steel - this allows using the equipment at various temperatures. The pump design is characterized by monolithicity, it also has a compactness. The suction branch is horizontally located higher than the shaft axis, and the discharge branch is vertical. Water protection ensures long-term operation of the equipment. The Calpeda MXH 804/A pump is easy to use and maintain - access to the plugs used for filling and draining can be obtained from either side of the pump, as they are located on the same line. Power losses during pump operation are eliminated due to the pump connection, which is monolithic. Special pump versions are available with a Victaulic tri-clamp connection, with a flange connection, with special seals (mechanical), with Viton rings (sealing), with other voltages and frequencies, as well as for operating conditions at elevated or reduced temperatures. The power of the Calpeda MXH 804/A pump is 1.5 kW, and the voltage is 380 V. The pump provides a pressure of 19.5 to 42.5 m, and a capacity of 5 to 13 m³/h.

Scope of application

• Water supply
• Industrial and domestic sphere
• Agriculture and irrigation

Operating limitations

• Continuous operation mode
• Liquid temperature from -15°C to +110°C
• Ambient temperature no more than 40°C
• Maximum permissible final pressure in the pump body: 8 bar
