Calpeda MGPM 203

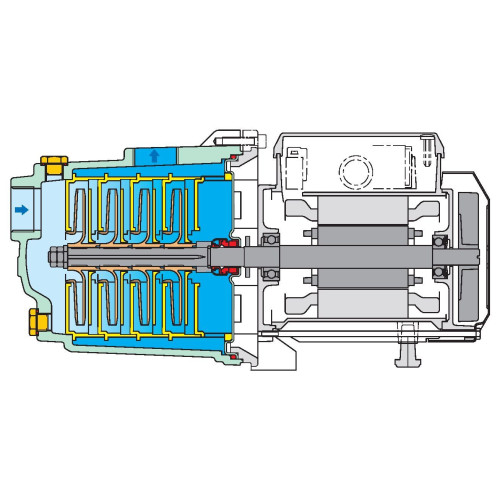

The Calpeda MGPM 203 pump is a monoblock horizontal multistage pump and has a compact mobile design, so the pumps are easy to operate and move. The pump requires minimal maintenance and is easy to install. The most popular task is to provide water supply to private buildings and commercial facilities. Pumps are also used in agriculture for watering areas. The pump is additionally protected from running dry. The suction pipe, which is supplied with the pump, is located above the pump shaft and provides a self-priming function when the pump and its suction pipe are pre-filled with water. The body has a monolithic design, open only on one side, and the connecting part and the base are monolithic - this reliably protects the pump motor from moisture getting inside. The water flow moves around the stages, so the Calpeda MGPM 203 pump produces less noise. The main material of execution is cast iron and high-quality composite materials. The pump parts are also made of high-quality materials: the stage body, suction part and impeller are made of noryl, the mechanical seal is made of ceramics. Such materials prevent corrosion and oxidation, which allows the pump to be used for many years. The engine has a modern design and can handle heavy loads. Special versions with other voltages and frequencies are possible. The power of the Calpeda MGPM 203 pump is 0.37 kW, and the voltage is 220 V. The pump provides a pressure of 7.5 to 29 m, and a capacity of 1 to 5 m³/h.

Scope of application

• Water supply
• Agriculture and irrigation
• Residential and office buildings
• Private houses and cottages

Operating limitations

• Continuous operation mode
• Liquid temperature from 0°C to +50°C
• Ambient temperature no more than 40°C
• Maximum permissible final pressure in the pump body: 8 bar
