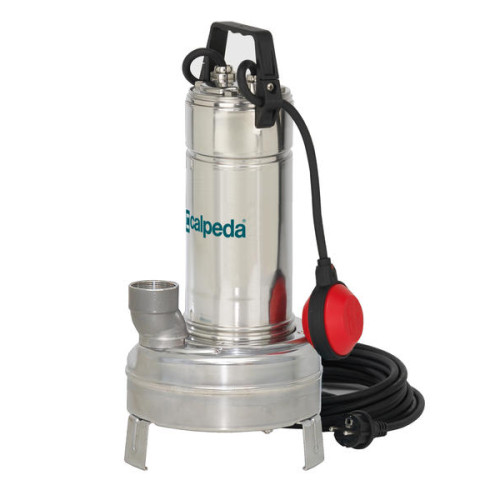

Calpeda GXV 40-7

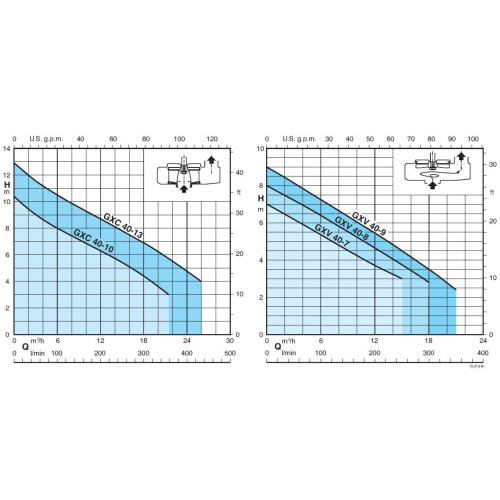

Submersible drainage pump Calpeda GXV 40-7 for dirty water with a settled impeller (vortex type). Double shaft seal in the oil chamber for reliable protection of the motor from water and for protection against dry running. The power of the Calpeda GXV 40-7 pump is 0.55 kW, and the voltage is 380 V. The pump provides a pressure of 3 to 6.2 m, and a capacity of 3 to 15 m³/h. Under the operating conditions specified in the instructions, the pump operates continuously 24/7.

Scope of application

• Industrial sphere
• Pumping of contaminated or clean water containing solids up to 35 mm in diameter.
• For liquids containing solid foreign bodies and long fibrous particles, the GXV model with a settled impeller is most suitable.
• This model (with smooth surfaces made of stainless rolled steel and easy to clean) can also be used in the food industry.

Operating limitations

• Continuous operation (with submersible motor)
• Maximum liquid temperature: 35°C
• Diving depth max: 5m.
• Immersion depth min.: 220 mm.
