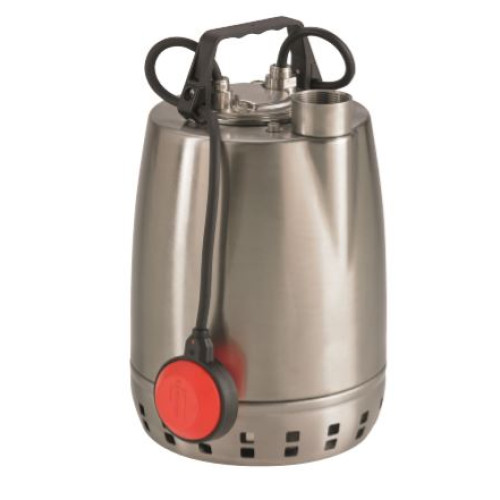

Pump Calpeda GXR 12-16

The Calpeda GXR 12-16 pump has unrivaled reliability and is designed to operate under difficult operating conditions. The pump pumps waste from industrial and agricultural facilities, drains flooded and flooded premises. The equipment allows you to take water from natural reservoirs, tanks and wells. It pumps both clean water and slightly contaminated water containing solids. The pump is suitable for 24/7 operation. The Calpeda GXR 12-16 pump is equipped with a float switch, which allows you to start and stop automatically. The main parts of the pump are made of stainless chrome-nickel steel, which eliminates corrosion and mechanical damage. The engine is cooled by liquid that passes through the inner and outer casing, which provides high-level cooling and increases the service life of the equipment. The shaft is made with a double seal. The float of the Calpeda GXR 12-16 pump is adjustable, so you can set the level of starting and stopping the equipment. The feed pipe is vertical, so when installing the pump in small wells, it is directed upwards, eliminating the need to use an elbow pipe. Special pump versions include other voltages and frequencies, other mechanical end seals, a fixed (magnetic) float switch. The power of the Calpeda GXR 12-16 pump is 0.9 kW, and the voltage is 380 V. The pump provides a pressure of 3.2 to 14.7 m, and a capacity of 3 to 27 m³/h.

Scope of application

• Construction
• Industry
• Agriculture and irrigation
• Residential and office buildings
• Drainage and sewerage

Operating limitations

• Continuous operation mode
• Liquid temperature up to +50°C
• Diving depth: max 5m
• Minimum emptying level with float 70 mm for GXR and 130 mm for GXV
• Minimum manual emptying level 15 mm for GXR and 30 mm for GXV
