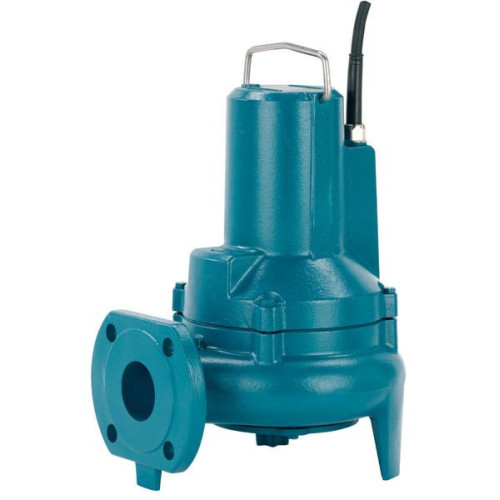

Calpeda GMV 50-65B

The submersible pump Calpeda GMV 50-65B is used for pumping domestic and industrial wastewater that is not aggressive to the design features of the pump, as well as for dirty liquids, including those with solid foreign bodies for liquids compatible with the pump materials. The pump is ideal for use in pumping stations and storm sewers of various types, as well as for pumping wastewater from various first-flow tanks. The modern design of the pump is equipped with the latest protection systems, which allows you to operate the pump for as long as possible. The pump has a built-in thermal protection system and a capacitor. The double mechanical seal is located in the oil chamber, which eliminates idle operation of the pump. The Calpeda GMV 50-65B pump is equipped with a float switch, which allows you to start and stop automatically. The pump is made of materials that prevent corrosion and eliminate deformation with a sharp change in temperature. The metal support in the Calpeda GMV 50-65B pump is used for centering between the shaft and the motor, even in non-standard operating conditions. A metal element with a thread is inserted into the feed pipe, which eliminates damage when connecting the coupling. The pump electric motor belongs to a new generation and is highly reliable. A special version is possible that provides a winding with triple impregnation resistant to moisture. The power of the Calpeda GMV 50-65B pump is 1.1 kW, and the voltage is 380 V. The pump provides a pressure of 1 to 9.5 m, and a capacity of 6 to 35 m³ / h.

Scope of application

• Construction
• Industry
• Agriculture and irrigation
• Residential and office buildings
• Drainage and sewerage

Operating limitations

• Continuous operation (with submerged engine)
• Liquid temperature up to +35°C
• Acidity index: 6-11
• Maximum immersion depth: 10 m (with cable of appropriate length)
