Calpeda BSM2V 2 MXH 204/A-EMT

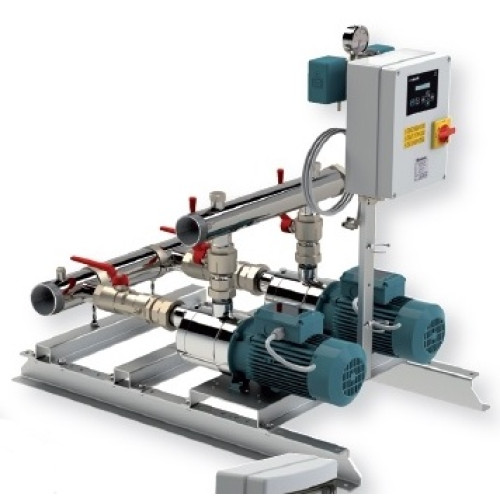

Calpeda BS pumping booster stations are characterized by high performance and easy operation. It is a highly efficient automatic constant-pressure pumping equipment, which consists of variable-speed pumps with a frequency converter in the console and constant-speed pumps mounted on a common frame. The equipment also includes shut-off and check valves, a pressure sensor, a control panel and a diaphragm receiver. Calpeda BS booster pumping stations operate with a capacity from 1.5 to 570 m3/h and generate a head from 10 to 95 m. All components of the equipment are made of high-quality materials that are resistant to corrosion, oxidation and mechanical damage, which ensures a long service life of the pumps. The engine of the Calpeda BS booster stations with a capacity from 0.45 to 55 kW, a voltage of 220 or 380 V operates at 2,900 rpm and is designed for a long operational period. It functions smoothly even under high loads. Calpeda BS booster pumping stations are effectively used in industry, construction, housing and communal services and the agricultural sector.

Scope of application

Industry

Civilian buildings

Pressure increase

Operational limitations

Liquid temperature up to +110°C

The ambient temperature is not more than 40°C
