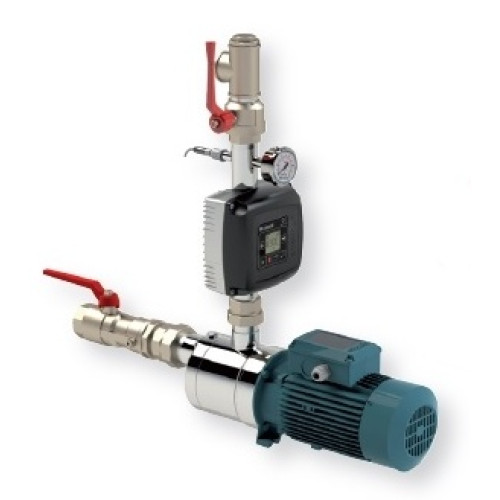

Calpeda BSM1V 1MXHM 204/A-EMM

Calpeda BS booster pumping stations are characterized by high performance and ease of control. This is a highly efficient automatic constant pressure pumping equipment, which consists of variable speed pumps with a frequency converter in the control panel and constant speed pumps installed on a common frame. The design of the equipment also includes shut-off and check valves, a pressure sensor, a control panel and a membrane receiver. Calpeda BS booster pumping stations operate with a capacity of 1.5 to 570 m³/h and generate a pressure of 10 to 95 m. All components of the equipment are made of high-quality materials that are resistant to corrosion, oxidation and mechanical damage, which ensures a long service life of the pumps. The engine of the Calpeda BS booster station with a power of 0.45 to 55 kW, voltage of 220 or 380 V operates at 2900 rpm and is designed for a long service life. It functions smoothly even under increased loads. Calpeda BS booster pumping stations are effectively used in industry, construction, housing and communal services and agriculture.

Scope of application

• Industry
• Civil buildings
• Increased pressure

Operating limitations

• Liquid temperature up to +110°C
• Ambient temperature no more than 40°C
