Calpeda BCTM 61/A

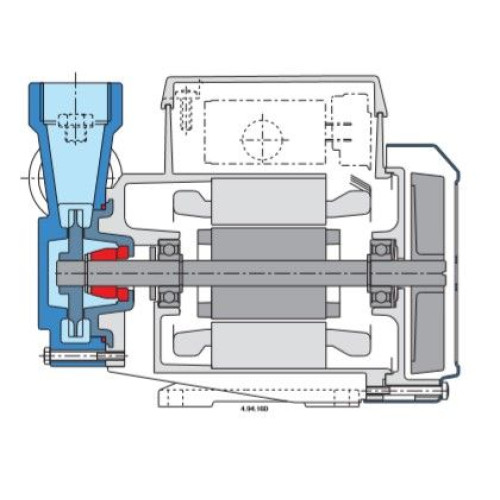

The Calpeda B-CTM 61/A monoblock pump can handle liquids with different chemical compositions and temperatures, so the pump can be used to solve a wide range of problems in various industries, agriculture, construction and housing and communal services. The Calpeda B-CTM 61/A centrifugal pump also greatly increases the operating pressure in water supply distribution networks, increases the pressure when lifting water from wells and boreholes for transportation to the final destination. The pump design is patented and is compact, meeting the modern requirements of the industrial water supply and engineering systems industry. One of its characteristic features is the peripheral impeller. The pump is highly reliable, the materials include cast iron, brass, bronze, as well as chrome, chrome-nickel and chrome-nickel-molybdenum steel. These materials provide stable protection against corrosion and oxidation, which increases the service life. Various special versions are also possible, allowing the pump to work with sea water, weak saline water solutions, various water solutions of glycols, including those with sub-zero temperatures, with liquids exceeding 110 degrees, with hot oils and lubricants, as well as diesel fuel. The pump is designed to work with an inverter. The power of the Calpeda B-CTM 61/A pump is 0.33 kW, and the voltage is 220 V. The pump provides a pressure of 5 to 41 m, and a capacity of 0.48 to 2.3 m³/h.

Scope of application

• Construction
• Industry
• Agriculture and irrigation
• Residential and office buildings

Operating limitations

• Continuous operation mode
• Liquid temperature no more than 60°C
• Ambient temperature no more than 40°C
• Manometric suction height no more than 7 m
• Maximum permissible final pressure in the pump body: 6 bar
